Technical Specifications

General Features

  • Real-time audio processing: low latency & jitter
  • Multi-engine & multi-timbral
  • Up to 16 chains (MIDI+Synth+FXs)
  • Audio Mixer
  • Master FXs
  • Snapshots & ZS3 subsnapshots
  • Soundfont support: SF2, SF3, SFZ & GIG
  • Included Synth Engines: > 50
  • Included Sounfonts: > 100
  • Included Audio FXs: > 500
  • Included MIDI FXs: > 50
  • Included Audio Generators: > 40
  • Automation: Arpeggiator, Chorder, LFO
  • Autotune (talantedhack & x42-autotune)
  • Step Sequencer + Launch Grid
  • Live Looping Sampler (Sooper Looper)
  • Keyboard splitting, scale & semitone transposing
  • Metronome & tuner
  • Multitrack Audio Record/Play
  • MIDI Record/Play
  • MIDI learning for parameters & programs
  • Advanced Audio & MIDI routing
  • Web Configuration tool
  • Remote Control & GUI
  • MIDI over Network / TouchOSC
  • MIDI feedback (motorized faders integration)
  • Experimental Audio to MIDI conversion
  • and much more ...

Hardware (kit v4)

  • Raspberry Pi 4
    • BCM2711, Quad core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz.
    • 2GB, 4GB or 8GB LPDDR4-3200 SDRAM (depending on model)
    • WIFI 2.4 GHz and 5.0 GHz IEEE 802.11ac
    • Gigabit Ethernet
    • Bluetooth 5.0, BLE.
    • 2 USB 3.0 ports, 2 USB 2.0 ports
    • 2 x micro-HDMI ports (up to 4kp60 supported)
  • ZynADAC v1.0
    • 2 x Balanced audio output channels
    • 2 x Balanced audio input channels
    • Adjustable input gain (-12 to 32 dB)
    • DAC Burr-Brown PCM5242 (192kHz/24bit)
    • ADC Burr-Brown PCM1862/63 (192kHz/24bit)
    • Dedicated Ultra Low Noise LDOs for DAC & ADC
    • Dedicated Ultra Low Jitter Oscillators

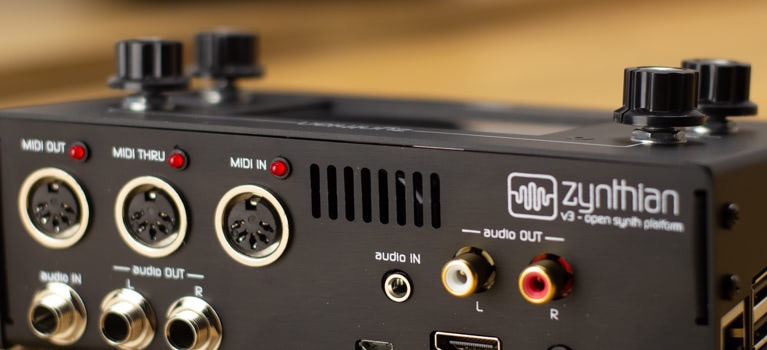

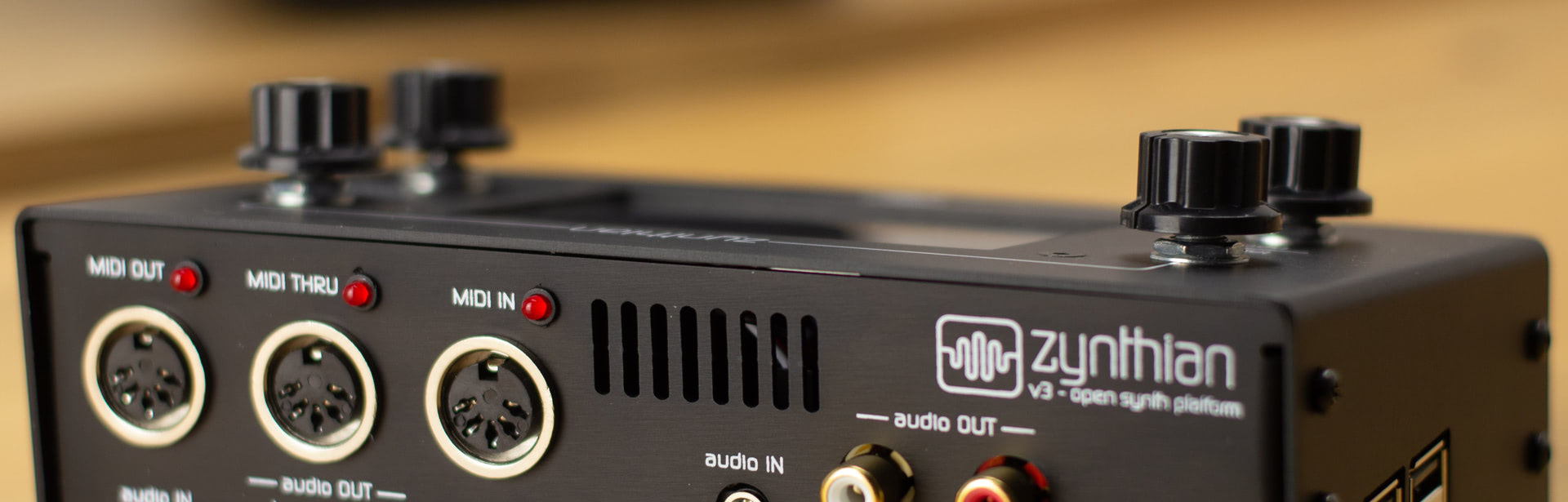

  • Case Connectors:
    • Audio-Out Connectors: 2 x Balanced TRS-Jack 6.35mm
    • Audio-In Connectors: 2 x Balanced TRS-Jack 6.35mm
    • MIDI DIN-5 connectors: IN/THRU/OUT
  • User Interface:
    • Touch-display Zynscreen 3.5"
    • 4 x increamental rotary encoders with switch
    • 4 x assignable push-buttons
    • MF-A01 bakelite knobs
  • Case:
    • Black Anodized Aluminum
